USA states + territories from SHP to TOPOJSON

NOTE: This is work completed as part of my tenure as data scientist at the National Endowment for the Humanities. It is in the public domain under a CC0 license. I have linked to the fork I made for purposes of stability.

USA states + territories from SHP to TOPOJSON

This repository contains scripts that will convert US Census cartographic boundary shapefiles to lightweight topojson files, which include all 50 states, the District of Columbia, and five permanently inhabited territories: American Samoa, Guam, Northern Mariana Islands, Puerto Rico, and the U.S. Virgin Islands.

Pre-built topojson files for the years 2014 to 2023 are contained in the repository:

• /data/json/unproj - unprojected files
• /data/json/proj - files projected using a modified version of the Albers projection that relocates Alaska, Hawaii, and territories to areas under the contiguous 48 states

Files are at three geographic levels (state, county, and congressional district) and three resolutions (500k, 5m, and 20m).

Building the files

Dependencies

In order to build the maps, you will need the following Javascript libraries installed on your machine:

• shapefile
• ndjson-cli
• topojson-server
• topojson-simplify
• topojson-client
• d3-geo-projection
• geo-albers-usa-territories

You can get them each through npm: npm install <package>

You will also need the following scripts in the js directory:

• condist_properties.js
• county_properties.js

To build maps

To build all topojson files, run the following command inside the scripts/bash directory:

$ > cd ./scripts/bash
$ > ./batch -s YYYY -e YYYY -r 500k,5m,20m

where

[-s]       Survey year start
[-e]       Survey year end (if blank, assumed same as start)
[-r]       Resolution: 500k, 5m, 20m
[-p]       Project (AlbersUsaTerritories)

For example,

$ > ./batch -s 2014 -e 2023 -r 5m

will build unprojected 5m resolution files for all years between 2014 and 2023, inclusive. You can build all resolutions by separating each resolution after the -r flag with commas:

$ > ./batch -s 2020 -e 2021 -r 500k,5m,20m

If you leave out the -e flag, the script will build only the year after the -s flag.

If you wish to pre-project the file using the AlbersUsaTerritories projection, which can save the processing required to make projections at runtime (speed up), then add the -p flag:

$ > ./batch -s 2020 -e 2021 -r 5m -p

In all cases, final topojson files will be saved in either the data/json/unprojected or data/json/projected directory as determined by the -p flag.

Boundaries

Files are at three levels:

• State
• County
• Congressional district

Each file contains boundaries for its level as well as those above it.

• State levels:
  • state
  • nation
• County levels:
  • county
  • state
  • nation
• Congressional district levels:
  • cdistrict
  • state
  • nation

Projections

To project the unprojected topojson data files to match the pre-projected files (non-contiguous states and territories are moved for easier mapping), you will need to use the JSON scripts located in assets/js:

• d3.v7.min.js
• topojson.min.js
• geoalbersuster.js

The first two scripts are general libraries necessary for working with D3 and topojson files. The third file contains the scripts necessary for projecting the unprojected maps with the key function:

const projection = geoAlbersUsaTerritories.geoAlbersUsaTerritories()
  .scale(1280)
  .translate([width / 2, height / 2]);
const path = d3.geoPath().projection(projection);

The unprojected files, however, can be projected using any other projection available via the D3 projection library.

Visualizing built maps

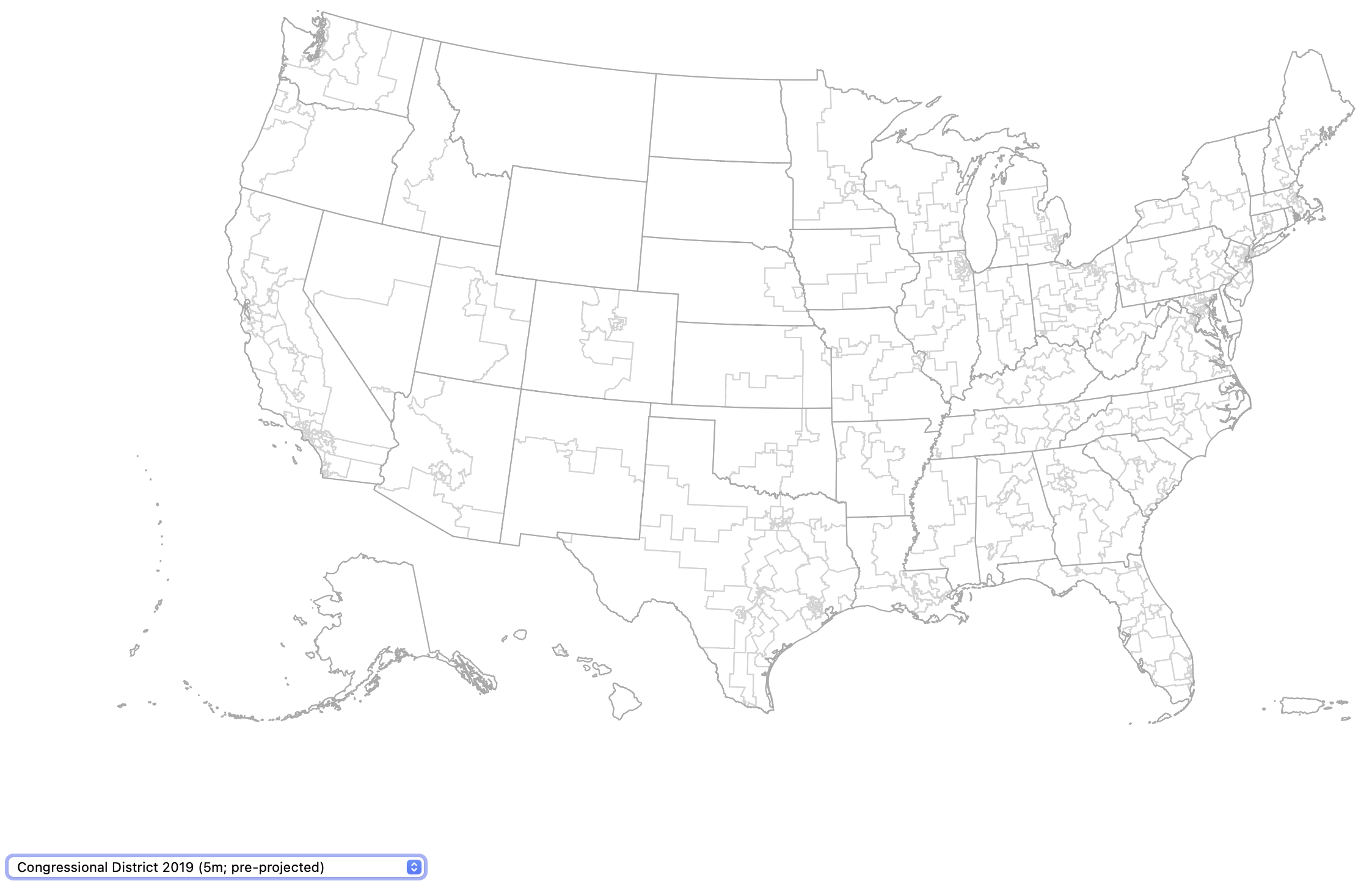

If you would like to visualize the projected maps, start a local server in the root directory (see: npm local-web-server) and visit the localhost page in your browser. From there, you can select the various maps via a drop down menu.

$ > npm install local-web-server
$ > npx ws

Paste http://127.0.0.1:8000 in your browser.

Using maps in other projects

The script section in index.html can be modified / reused in order to use these maps in other projects.

Acknowledgments

• Projection
• Command line cartography

Disclaimer
